Automatic Migration to Standalone Components in 3 Steps

8. March 2023 | Article by Manfred Steyer, GDE

This is post 8 of 8 in the series “Angular's Future with Standalone Components”

While the new Standalone Components can be perfectly combined with traditional NgModule-based Angular code, people might want to fully migrate their projects to the new standalone world. Since Angular 15.2, there is a schematic that automates this task. In 3 steps it converts projects. After each step, we can check the current progress and manually take care of details the automatism could not cope with.

In this short tutorial, I'm going to step through these 3 steps with you and migrate our demo app.

If you want to play through these steps, you can find the NgModule-based initial situation of our tutorial here:

📂 https://github.com/manfredsteyer/standalone-example-cli
(Branch ngmodules)

A First Look at the Application to Migrate

After checking out the ngmodules branch (!) of the above-mentioned project, it might be a good idea to go through the source code a bit. You should recognize the following NgModules:

AppModule
SharedModule
FlightBookingModule

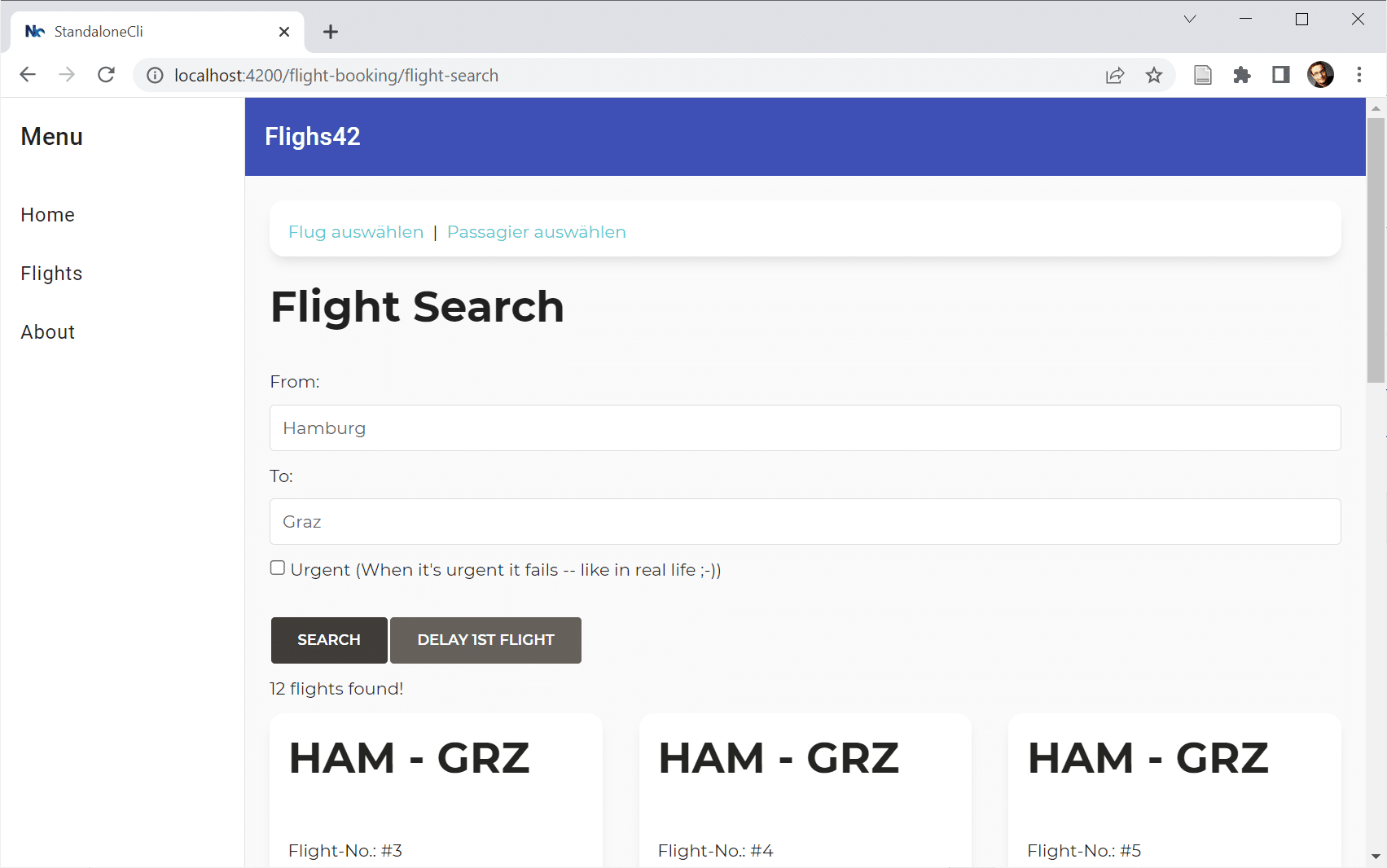

Also, start the application to get a first impression of it:

ng serve -o

Step 1

Now, let's run the migration schematic available from Angular 15.2:

ng g @angular/core:standalone

When asked about the type of migration, we select the first option (because it's such a nice tradition to "start at the beginning" ...).

When asked about the path to migrate, we go with the default value by pressing enter:

This default value ./ points to the project's root. Hence, the whole project will be migrated at once. For small and medium-sized applications this should be fine. For bigger applications, however, it might be interesting to migrate the project gradually.

After this first step, you should have a look at the source code and check if everything is fine. In the case of this example project, you don't need to bother. The schematics do a great job here!

Step 2

Now, let's run the schematic again for the second step:

The output shows that the SharedModule was removed and the other modules have been updated. It's fine that the AppModule is still in place -- it will be removed in the 3rd step. However, all other NgModules should be gone by now. Unfortunately, the FlightBookingModule is still in place:

// src/app/booking/flight-booking.module.ts

@NgModule({
    imports: [
        CommonModule,
        FormsModule,
        StoreModule.forFeature(bookingFeature),
        EffectsModule.forFeature([BookingEffects]),
        RouterModule.forChild(FLIGHT_BOOKING_ROUTES),
        FlightCardComponent,
        FlightSearchComponent,
        FlightEditComponent,
        PassengerSearchComponent
    ],
    exports: [],
    providers: []
})
export class FlightBookingModule { }

As this listing shows, the FlightBookingModule doesn't do much anymore. However, there are some calls to methods within the imports section. These methods are for setting up the router and the NGRX store. As they are quite library-specific, the automatism was not able to convert them into calls of equivalent Standalone APIs. So, we need to take care of this by hand.

RouterModule.forChild sets up some child routes that are loaded alongside the FlightBookingModule. However, in a standalone world, we don't need NgModules for setting up child routes anymore. Instead, the parent routing configuration can directly point to the child routes. Hence, let's switch to the file app.routes.ts and update the route triggering lazy loading:

// src/app/app.routes.ts

{
    path: 'flight-booking',
    canActivate: [() => inject(AuthService).isAuthenticated()],
    loadChildren: () =>
        import('./booking/flight-booking.routes')
                .then(m => m.FLIGHT_BOOKING_ROUTES)
},

Please note that the import now directly imports the flight booking routes. There is no indirection via the FlightBookingModule anymore. There is even the possibility of shortening this further: If the file flight-booking.routes.ts exports the routes as its default export, we can skip the subsequent then call:

{
    path: 'flight-booking',
    canActivate: [() => inject(AuthService).isAuthenticated()],
    loadChildren: () =>
        import('./booking/flight-booking.routes')
},

To make sure, the NGRX store is initialized for this lazy application part, we can register the respective providers directly for the lazy child routes:

// src/app/booking/flight-booking.routes.ts
import { importProvidersFrom, inject } from '@angular/core';
[...]

export const FLIGHT_BOOKING_ROUTES: Routes = [
  {
    path: '',
    component: FlightBookingComponent,
    canActivate: [() => inject(AuthService).isAuthenticated()],
    providers: [
      importProvidersFrom(StoreModule.forFeature(bookingFeature)),
      importProvidersFrom(EffectsModule.forFeature([BookingEffects])),
    ],
    children: [
        [...]
    ],
  },
];

This new provider array sets up services that are only needed for the route at hand and its children. The function importProvidersFrom bridges over to the world of NgModules and allows retrieving their providers.

Now, we can delete the FlightBookingModule (src/app/booking/flight-booking.module.ts).

Step 3

Let's run our migration schematic for the 3rd time:

This removes the AppModule and updates the file main.ts to directly bootstrap the AppComponent. After this step, the application should work as before:

ng serve -o

Bonus: Moving to Standalone APIs

When we look into the main.ts, we see that it still references several modules with importProvidersFrom:

bootstrapApplication(AppComponent, {
  providers: [
    importProvidersFrom(
      BrowserModule,
      LayoutModule,
      LoggerModule.forRoot({
        level: LogLevel.DEBUG,
        appenders: [DefaultLogAppender],
        formatter: (level, cat, msg) => [level, cat, msg].join(';'),
      }),
      StoreModule.forRoot(reducer),
      EffectsModule.forRoot(),
      StoreDevtoolsModule.instrument(),
      MatToolbarModule,
      MatButtonModule,
      MatSidenavModule,
      MatIconModule,
      MatListModule
    ),
    {
      provide: HTTP_INTERCEPTORS,
      useClass: LegacyInterceptor,
      multi: true,
    },
    provideAnimations(),
    provideHttpClient(withInterceptorsFromDi()),
    provideRouter(APP_ROUTES, withPreloading(PreloadAllModules)),
  ],
});

Also, there is a traditional class-based HttpInterceptor registered and the HttpClient is made aware of this by calling withInterceptorsFromDi. By moving to Standalone APIs, this can be improved:

bootstrapApplication(AppComponent, {
  providers: [

    provideLogger({
      level: LogLevel.DEBUG,
      appenders: [DefaultLogAppender],
      formatter: (level, cat, msg) => [level, cat, msg].join(';'),
    }),

    provideStore(reducer),
    provideEffects(),
    provideStoreDevtools(),

    provideAnimations(),

    provideHttpClient(withInterceptors([authInterceptor])),
    provideRouter(APP_ROUTES, withPreloading(PreloadAllModules)),

    importProvidersFrom(
      LayoutModule,
      MatToolbarModule,
      MatButtonModule,
      MatSidenavModule,
      MatIconModule,
      MatListModule
    ),

  ],
});

This modification takes care of the following aspects:

Removing the import of the BrowserModule that doesn't need to be explicitly imported when bootstrapping a Standalone Component.
Setting up the custom Logger library with provideLogger.
Setting up the NGRX store with provideStore, provideEffects, and provideStoreDevtools.
Replacing the traditional HttpInterceptor with a functional interceptor that is now passed to withInterceptors. To make this step easier, the functional counterpart has already been part of the code base since the beginning.

More information about custom Standalone APIs like provideLogger can be found here.

NGRX expects that its Standalone APIs are used fully or not at all. Hence, we also need to go back to the flight-booking.routes.ts and replace the call to importProvidersFrom with calls to provideState and provideEffects:

export const FLIGHT_BOOKING_ROUTES: Routes = [
  {
    path: '',
    component: FlightBookingComponent,
    canActivate: [() => inject(AuthService).isAuthenticated()],
    providers: [
      provideState(bookingFeature),
      provideEffects(BookingEffects)
    ],
    children: [
        [...]
    ],
  },
];

Please note that while we call provideStore in the main.ts to set up the store, we need to call provideState (!) in further parts of the application to set up additional feature slices for them. However, provideEffects can be called in both places to set up effects for the root level but also feature slices.

After this modification, the application is migrated to Standalone Components and APIs. Run it via

ng serve -o

Conclusion

The new schematics automate the migration to Standalone Components. In three steps, the whole application or just a part of it is moved over to the new lightweight way of working with Angular. After each step, we can check the performed modification and intervene.
